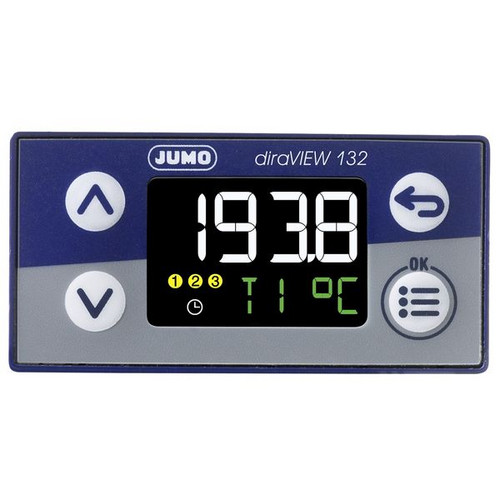

JUMO 00694782 Dig Anzeigeinstrument

The universal applicable digital indicator in the small DIN landscape format is suitable for the front installation to display temperature, pressure and other process variables. The device is caracterized by a easy, clearly structered and supported with text operation. Process value and parameters are shown on two 18-segment-LCD-dispalys. The version has individual display elements for the switch position of the outputs and also for manual mode, ramp function and timer. The display is operated by a membrane keyboard with four keys and can be used at rough environmental influences because of the high protection type IP65. The digital indicator has a min-max-value-display function, hold-function, tare function, limit value monitoring function, digital control signal, wide timer function an a service counter. With the setup program (included program editor and ST editor) it can be configured with a computer. The configuration is about the USB interface it does not need a seperate voltage supply (USB powered). In the hardware is also a universal input, two relay outputs (normally open contact), a digital input and a digital in- and output included. The voltage supply range is AC/DC 20 to 30 V, 48 to 63 Hz.
